JYD-804 HD video decoder is a professional hardware decoding device. It is capable of decoding incoming streams from IP Camera, stream media server, or any encoder (based on RTSP, RTMP, RTP, unicast and multicast) without PC or software. The output interface can be SDI and DVI - I (HDMI/VGA). This device decodes IP video from encoders via Ethernet.
Application
It can be used to all applications which need to convert SDI to HDMI, VGA and AV(CVBS), such as broadcasting, video teaching, long-distance video transmission, video conference, security monitoring and so on.
H.264 video decoding
High Compatibility, wide Application
7*24 Working mode
SDK provided.
SD/HD/3G SDI & HDMI/DVI/VGA output (up to 1080p60Hz)
Easy operation and high compatibility
● Web User Interface Configuration;
● Decoding streams from any encoder (based on RTSP, RTMP, RTP, unicast and multicast) ;
● Supported protocols including RTMP/TS over UDP/RTP/RTSP;
● Output interface can be SDI, DVI, HDMI/DVI and VGA, full resolutions (including self-defined resolution) supported;
● Output analog audio, SDI and HDMI embedded audio simultaneously.
Good performance and low latency at low bitrate
● With Kiloview unique high-quality image enhancement and fault-tolerant technology, it has powerful error resistance, for video encoded at low bitrate, excellent image with high quality audio output can be obtained;
● Decoding latency can be less than 200 ms under a typical network environment with Kiloview intelligent latency control technology;
● H. 264 video decoding;
● AAC - LC/G. 711 audio decoding;
● SDI output can be SD HD and up to 1080p.
Portable size, low power consumption,USB extendable
● Dimension is 138mm*105mm*27mm;
● Power consumption less than 5w
● USB extendable for external storage or wifi modem.
High quality, 7*24h Working, Customization available
● Branded parts with strict quality control;
● SDK provided for second development;
● Customization service available based on client’s needs.
Application

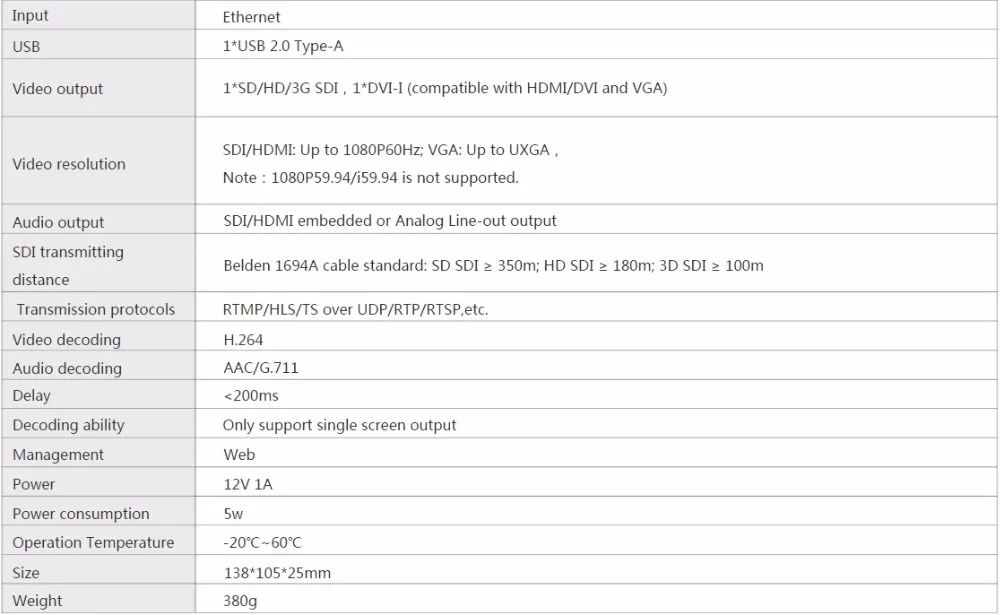

Parameter
