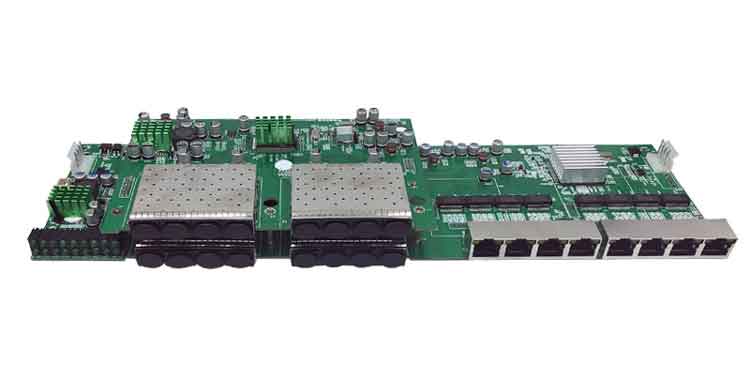

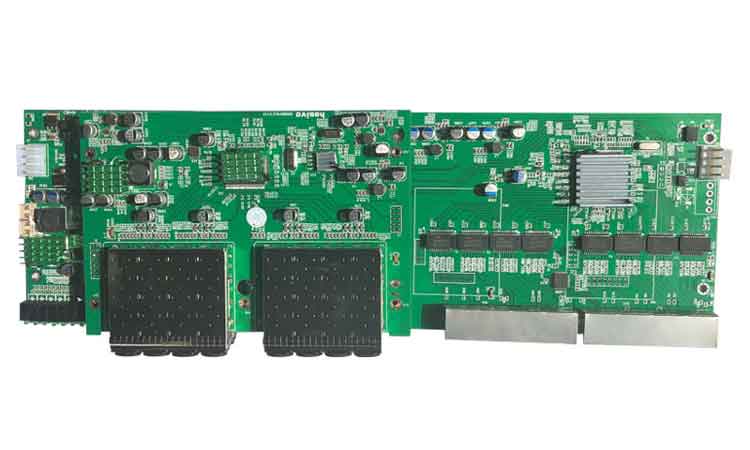

16G8E Series Fiber Switch PCBA

分类:光纤交换机PCBA
时间:2019/3/7 16:45:05
点击数:3170
  • 详细介绍

Overview

16+8 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch, provides 8 10/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports wire-speed switching of the second layer.

Users can set all kinds of functions of the switch through the Ethernet port in WEB. Built-in ARP and DOS defense system can effectively defense the ARP, DOS and various virus attack, moreover, It is also equipped with many powerful features: a comprehensive QoS, spanning tree, a storm suppression, Bandwidth Control, IGMP Snooping, ACL access control, DHCP snooping etc. Very suitable for small and medium-sized enterprises, campus network, and the metropolitan area network aggregation applications.



 Features

1. ARP defense: the function of MAC address and port binding and MAC address security filtering can effectively defense the ARP attack; DHCP snooping can provide ARP protection for users to obtain the MAC dynamically.

2. Qos: support for multiple QOS strategy. Based on the 802.1p priority setting, each port provides eight priority queues. IP-DSCP can be divided into different service levels according to the IP header , to achieve a comprehensive QOS. AUTO VOIP can set the port to the highest priority of the voice signal, improve the voice quality of network IP telephone greatly.

3. Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol).

4. AUTO DOS: defense the following DOS attack with seven different forms.
(1) Land attack: the attacker sends forged TCP SYN packets of information flow with the same source IP address, IP destination address, the victim system tries to send a response information to itself, result in a system disturbance and will be paralyzed or restart.
(2) Blat attack: the attacker sends forged packets with the same source port number and destination port number, the victim system tries to send a response information to itself, result in system crashes or restart.
(3) Smurf attack: the attacker uses spoofed source address of attack target to operate ping process to a broadcast address. Then all the active hosts will response the the target, leading to network congestion or disruption.
(4) Ping flood: flooding the target system by the ping broadcast storms, so that the system can not respond to legitimate correspondence.
(5) SYN/SYN-ACK flooded: floods the hole target system by SYN or SYN / ACK packet.
(6) Protect the invalid TCP attack: Prevent the flood of data caused by the invalid TCP packets.
(7) Ping of Death attack: Sends out a very large ICMP request packets ("Ping"), its intention is to cause the target computer input buffer overflow, so that the computer is paralyzed.

5. Storm suppression: can be set with the Broadcast, multicast, DLF traffic.

6. ACL Access Control: used to control the exchange of the packet from the port, to ensure that the intranet site will not be access to users without authority, while indirectly defend ARP attack.

7. IGMP Snooping: Support IGMP version 2 (RFC 2236): IGMP Snooping is used to establish the multicast groups to forward multicast packets to avoid wasting bandwidth when a multicast packet overflow network.

8. Support for 802.1x authentication, and to provide users with access to authentication.

9. Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure.

10. Support the function of port mirroring, port gathering, port speed limit.

11. Support the port-based VLAN and IEEE802.1Q based on VLAN .



Technical Indexes

Product Type

16+8 Management gigabit fiber network switches

Support agreement

IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum frame length

9216B

Ports

16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports

Network Media

1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.

1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.

10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S

100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S

1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S

VLAN Address Table

4K

MAC address table

8K

Cache

32Mbits

Backplane bandwidth

52Gbit

Filtering and forwarding rate

10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Dimensions

440x230x44mm(1U19-inch standard chassis)

Use of the environment

Operating Temperature: 0℃~40℃;

Humidity 10% ~ 90% non-condensing

Storage temperature:  -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing

Power

Input :90-264VAC ,50-60HZ; output: 5V/12A

Power consumption

Power consumption: 60W
