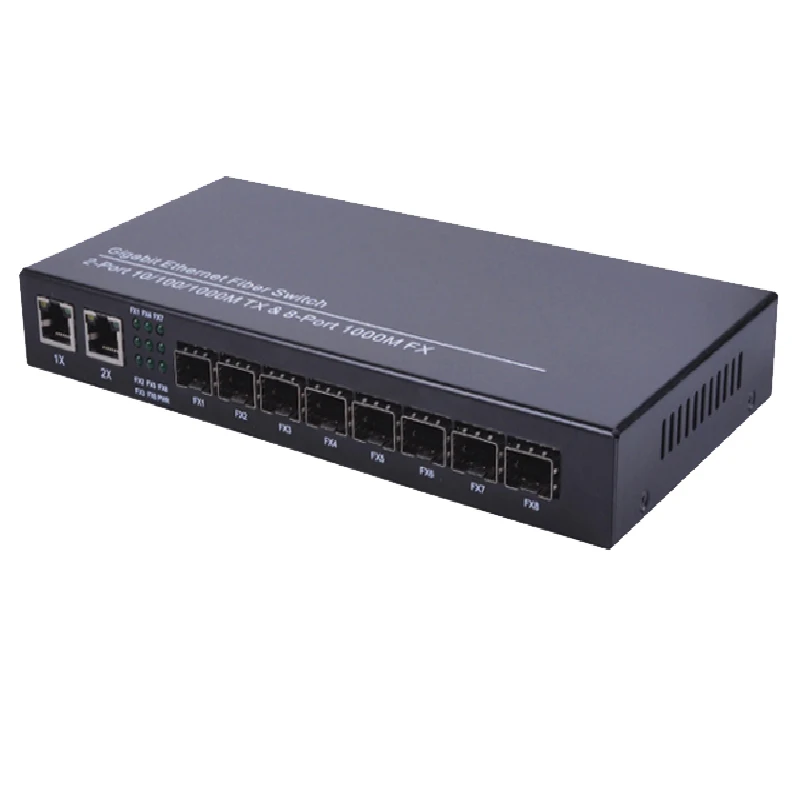

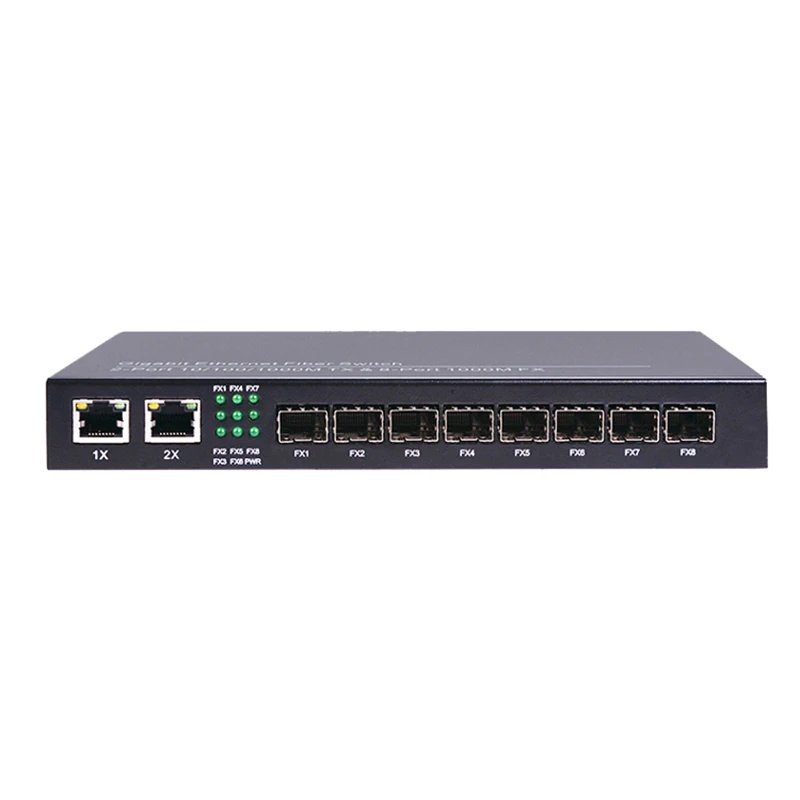

8 port SFP 2 RJ45

Time:2018/12/18 11:27:26
  • Details
Product Description

8 port SFP 2 Rj45 converter is our company independent research and development of green energy-saving Gigabit converged fiber switch; with simple and convenient installation and maintenance tools and rich business features to help users build a safe and reliable high-performance network. Mainly located in the industrial park, buildings, factories and mines, government agencies, community broadband and other user network core or convergence layer; can be widely used in small and medium enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios.


1. Supports 8*1000Mbps SFP ports,2*1000Mbps Ethernet interfaces

2. Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard

3. Flow control mode: full-duplex IEEE 802.3x standard, half-duplex using Back pressure standard

4. Support port auto flipping (Auto MDI / MDIX)

5. The use of storage and forwarding mechanism

6. All ports support wire-speed switching, support giant frame transmission

7. Panel lights to monitor the working status and help failure analysis

Techinical Parameter

Product Name: 8 port SFP 2 Rj45 converter

Product Model: STHA-8SFP2E-S

Port: 8*1000Mbps SFP ports,2*1000Mbps Tj45 port

Network protocol: Support IEEE802.3, IEEE802.3u, IEEE802.3x

Network media:  1000BASE-TX: Cat5 or Cat6 cable UTP(≤100 meters)

Fiber media: Support Multi-mode,Single-mode SFP /LC 1.25G fiber module




Packet forwarding rate: 1.488Mpps/port

MAC address table:4K

Forwarding mode: Storing-and-forwarding

LED Indicator

Power indicator:PWR

Speed indicator:LINK

Status indicator:ACT

Power supply: Input:110-240V AC,50-60HZ;Output: DC5V/2A

Working environment

Working temperature:-20~50°C

Storage temperature:-40~85°C

Storage humidity: 5% to 90% non-condensing

Operating humidity: 10% to 90% non-condensing

Physical structure

Product size:210mm*105mm*28mm

Packing size:250mm*179mm*63mm
