Part 1 Product Overview
VGA Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Main features
l Full digital, Uncompressed HD optical fiber transmission
l Support Full HD 1920*1200@60Hz
l The attenuation of optical module SFP low to -3db
l 1 channel analog audio（3.5mm）
l Support VGA
l Support KVM
l Automatic identification and configure display mode
l Automatic equalization inside, stable and clear graphics.
l ESD protection circuit inside, to ensure the ESD damage.
l Easily to installation, plug and play, no need to set up
Part 2 Standard Package
n VGA transmitter 1 pcs
n VGA receiver 1 pcs
n Power Supply Unit 12V/1A 2 pcs
n User Guide 1 pcs
Part 3 Interface overciew
Transmitter：
Receiver：
|
Interface |
Transmitter and Receiver |
|
VGA_IN |
VGA signal input port |
|
VGA_OUT |
VGA signal output port |
|
OPT |
Fiber input port |
|
AUDIO_IN |
Audio input port |
|
AUDIO_OUT |
Audio output port |
|
DC-12V |
12V Power port |
|
R T G |
RS232 port R(receive) T(transmit) G(ground) |
|
PC |
USB port to connect computer |
|
KEYBOARD/MOUSE |
Connect to keyboard and mouse |
|
DC-12V |
12V Power port |
|
Indicator Light |
VGA Transmitter |
VGA receiver |
|
|
OPTICAL |
On |
Optical signal on |
|
|
Off |
No optical signal |
||
|
VIDEO |
On |
Video signal on |
|
|
Off |
No Video Signal |
||
|
RUN |
On |
Device works smoothly |
|
|
Off |
Device not works smoothly |
||
|
POWER |
On |
Power on |
|
|
Off |
Power off |
||
Part 4 Performance and Specification
|
Temperature |
-5°C to +75°C |
|||||||||||||
|
Humidity |
5 to 90 % RH (no condensation) |
|||||||||||||
|
The signal of Input and output |
VGA |
|||||||||||||
|
Protocal |
VGA |
|||||||||||||
|
Pixel band width |
165MHz |
|||||||||||||
|
Video format |
|
|||||||||||||
|
The signa of Audio input and output |
3.5MM Audio |
|||||||||||||
|
Audio format |
44.1K,48K,96K,176K,192K |
|||||||||||||
|
RS232 port |
3 ports industrial terminal |
|||||||||||||
|
RS232 Baud rate |
Support 115200 and all below |
|||||||||||||
|
RS 232 Data bits |
8 bits |
|||||||||||||
|
KVM receiver port |
A USB port |
|||||||||||||
|
KVM transmitter port |
B USB port |
|||||||||||||
|
Fiber port |
LC |
|||||||||||||
|
Fiber module |
SFP single mode |
|||||||||||||
|
Fiber wavelength |
1550/1310nm |
|||||||||||||
|
Fiber band width |
3Gbps |
|||||||||||||
|
The Maximum transmission distance of VGA and Audio |
10KM 20KM 40KM 60KM |
|||||||||||||
|
Input voltage |
DC 12V，inside + outside - |
|||||||||||||
|
Power consumption |
VGA receiver 4W VGA transmitter 4W |
|||||||||||||
|
Device size |
109.5*152*29.3mm(length*width*height) |
|||||||||||||
|
Packing box size |
328*273*90mm(length*width*height) |
|||||||||||||
|
Weight |
1500g |
Part 5 Installation
1. Connect VGA input signal to VGA_IN port by VGA cable
2. Connect VGA output signal to VGA_OUT port by VGA cable
3、Connect Audio input signal to AUDIO IN port
4、Connect Audio output signal to AUDIO OUT port
5、Connect LC fiber to OPT
6、Power on.

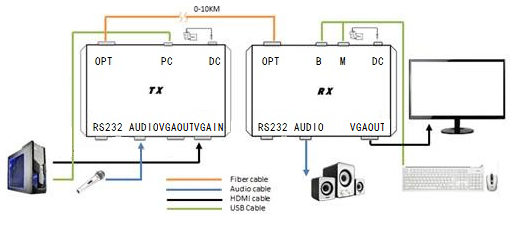

Part 6 Application Graphics
